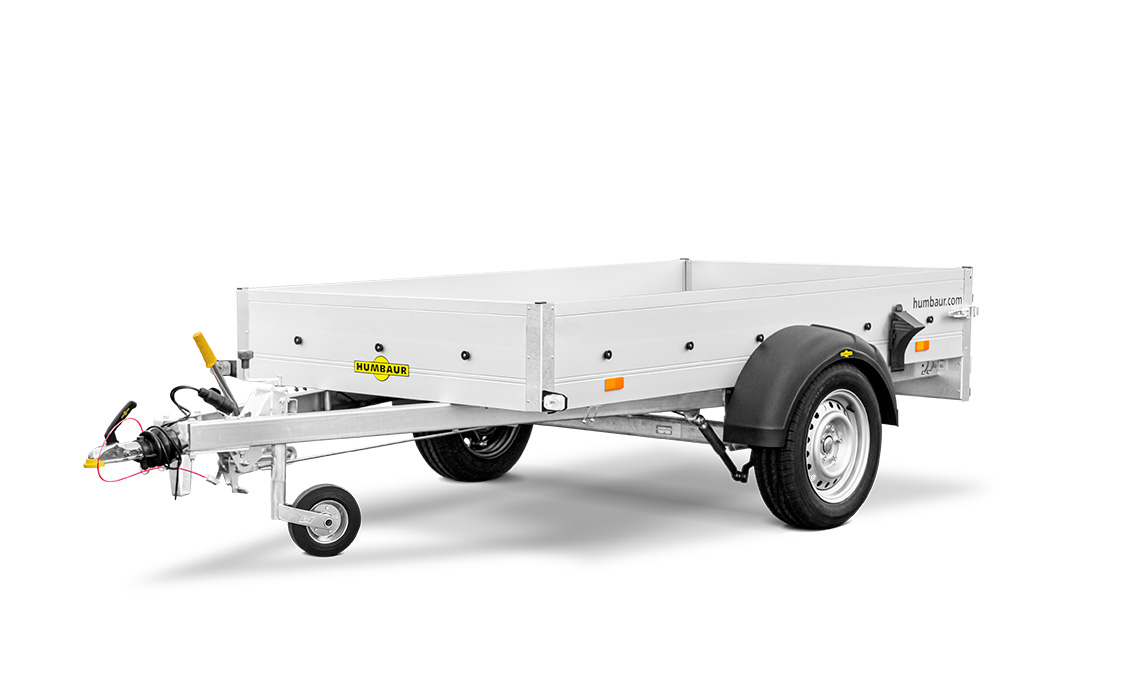

Single axle trailer HA Multi

HA Multi

The versatile transport aid
i

Galavnised v-shaped drawbar

i

13 pin plug

i

Floor plate 15 mm thick

i

Drop sides made of anodised, double-walled aluminium profiles.

i

6 lashing rings integrated in the side walls, traction force 400kg per ring, Dekra tested

i

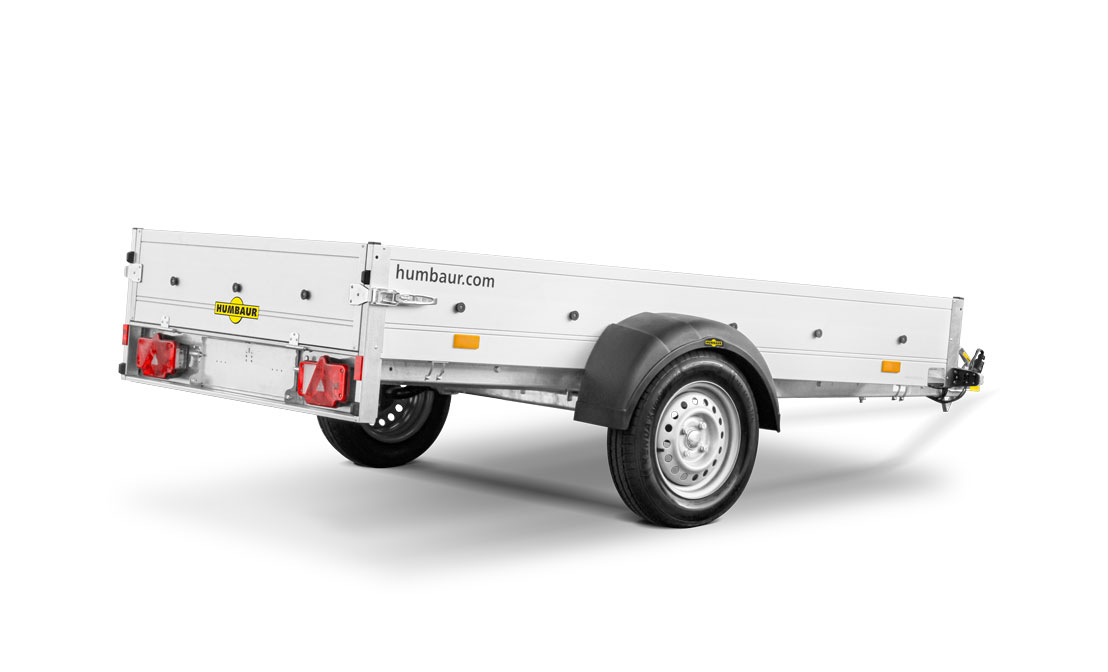

Humbaur multifunction lighting integrated into underride protection.

i

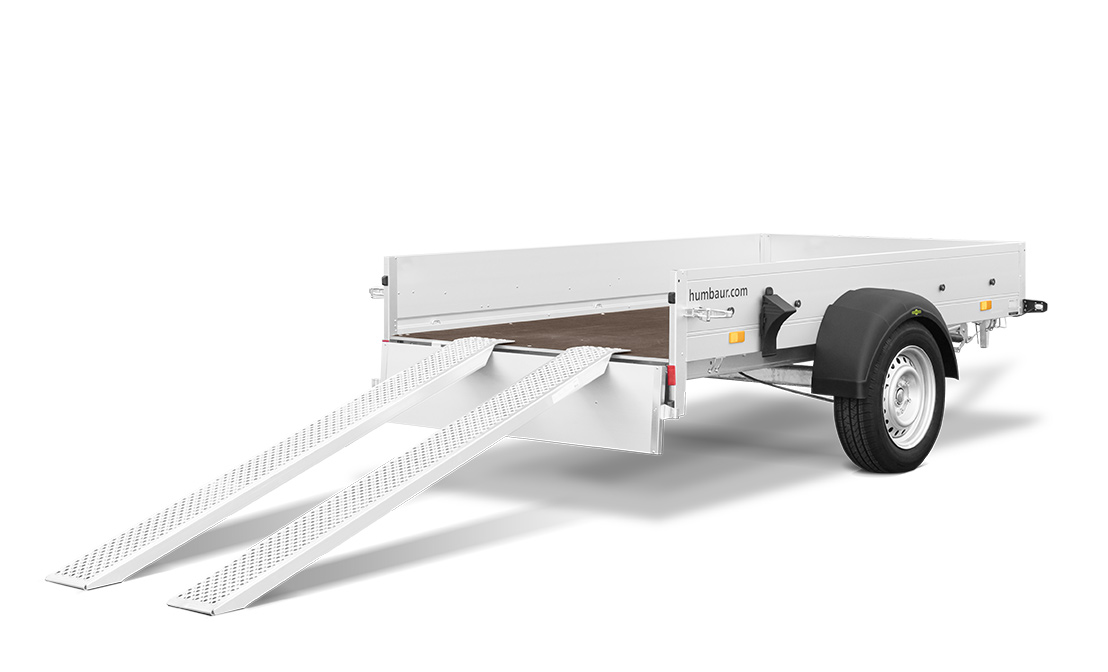

Insertion option for drive-on ramps

i

Corner stanchions with insert option

i

Round buttons for tarpaulin or load securing net

i

Available as an optional accessory.

The HA Multitransporter is a car-trailer suitable for a wide range of applications. The box trailer has a fixed front wall and side walls made of anodised, double-walled aluminium profiles with a height of 300 mm. The tailgate is equipped with toggle-type fasteners. The loading area of the flatbed trailer measures 2510 x 1310 mm. Three pairs of tie-down hoops are recessed into the side walls for securing the load. The tensile force is 400 kg per hoop. The HA Multitransporter can be equipped in a variety of ways thanks to features such as its corner stanchions with insert options, which can be used to fit additional side-wall elements 30 cm in size. A flat cover and an aluminium cover are available as accessories to provide protection from above. A motorcycle rail can also be retrofitted as an accessory and the option to fit loading planks is planned as a new standard feature of the series. The 15-mm thick, weather-resistant floor plate is sufficiently robust for any application. The HA Multitransporter is available in two variants: without a brake, with a permissible maximum weight of 750 kg, and with a brake and a permissible maximum weight of 1300 kg. The version with a brake includes a jockey wheel as standard.

Galavnised v-shaped drawbar
13 pin plug
Floor plate 15 mm thick
Drop sides made of aluminium profiles
6 lashing rings integrated in the side walls
Multifunction lighting integrated into underride protection
Insertion option for drive-on ramps
Corner stanchions with insert option
Round buttons

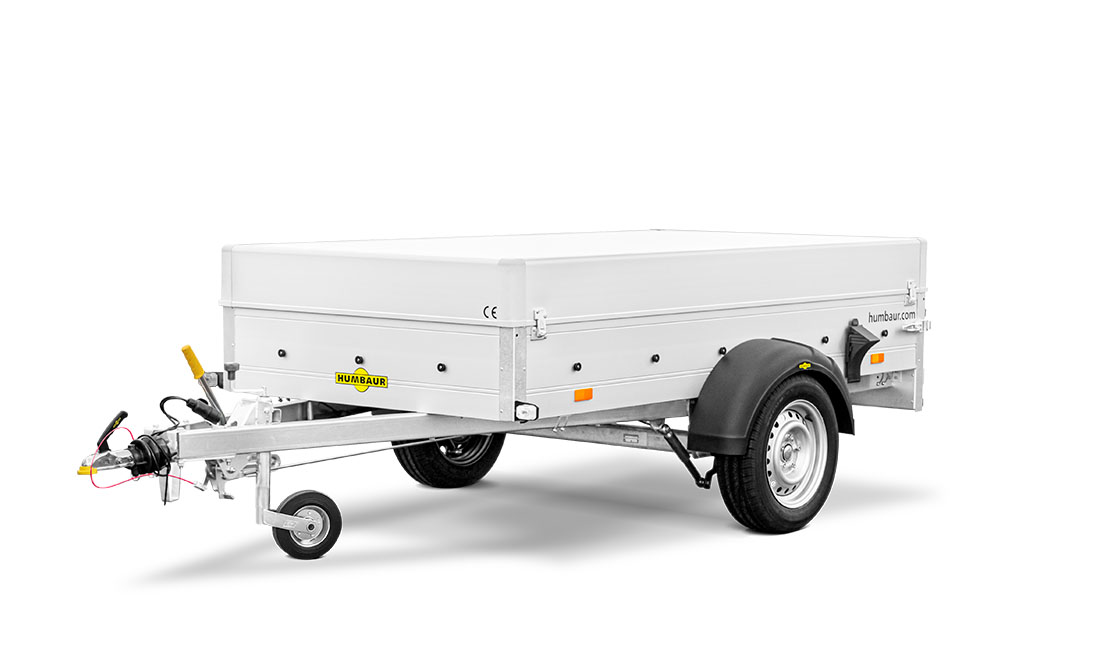

Aluminum lid

Technical data

HA Multi

Trailer HA Multi in detail
HA Multi silhouette sideview
Inner height 300 mmTotal height 800 mm
Inner length 2.510 mmTotal length 3.585 mm
HA Multi silhouette backside
Inner width 1.310 mmTotal width 1.760 mm

HA Multi Standard equipment

  • Galavnised v-shaped drawbar
  • 13 pin plug and reversing light from 751kg (gross weight)
  • Side walls made of anodised double-walled aluminum profiles
  • 6 lashing rings integrated in the side walls, traction force 400kg per ring, Dekra tested
  • Humbaur lighting integrated in the underrun protection
  • Insertion of the loading planks possible
  • Possibiltiy to insert corner stanchions

HA Multi Models

Permissible gross weight in kg
750
1300
1300
Load capacity in kg
592
1060
1055
Body dimensions in mm (LxWxH)
3585 x 1760 x 800
3765 x 1800 x 905
3765 x 1800 x 905
Internal dimensions in mm (LxWxH)
2510 x 1310 x 300
2510 x 1310 x 300
2510 x 1310 x 300
braked
-
Load height in mm
500
530
530
Tyre size in inches
13
14
14

HA Multi

Permissible gross weight in kg
750
braked
Body dimensions in mm (LxWxH)
3585 x 1760 x 800
Tyre size in inches
13
Internal dimensions in mm (LxWxH)
2510 x 1310 x 300
Load capacity in kg
592
Load height in mm
500



HA Multi

Permissible gross weight in kg
1300
braked
Body dimensions in mm (LxWxH)
3765 x 1800 x 905
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
2510 x 1310 x 300
Load capacity in kg
1060
Load height in mm
530



HA Multi

Permissible gross weight in kg
1300
braked
Body dimensions in mm (LxWxH)
3765 x 1800 x 905
Tyre size in inches
14
Internal dimensions in mm (LxWxH)
2510 x 1310 x 300
Load capacity in kg
1055
Load height in mm
530



Images similar; some images show special equipment.
