Cooling trailer HGK Deluxe
Compact cooling solution
Convenient for beverages and other refrigerated goods
V drawbar, hot-dip galvanised
13-pin plug and reversing light
Interiour light
Insulated floor plate 65 mm thick, with anti-slip coating
Side walls made of PurFerro sandwich panels, 60 mm thick, steel top layer

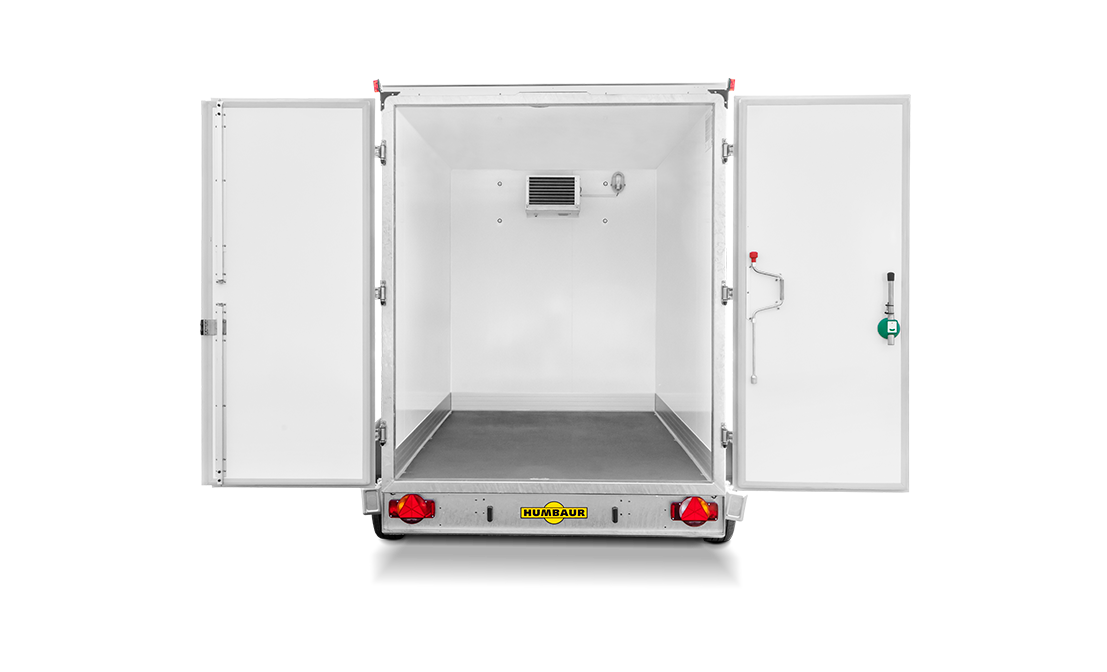

Double-wing cooling doors with cold room door lock (emergency opening from inside), lockable
Stainless steel hinges
Cooling unit from Govi
Side and front inside: Scratch protection, approx. 150 mm high, made of aluminium sheet metal
4 telescopic crank supports, swivel-mounted
Automatic jockey wheel
Humbaur multifunctional lighting with reversing light.
Handle for manoeuvring

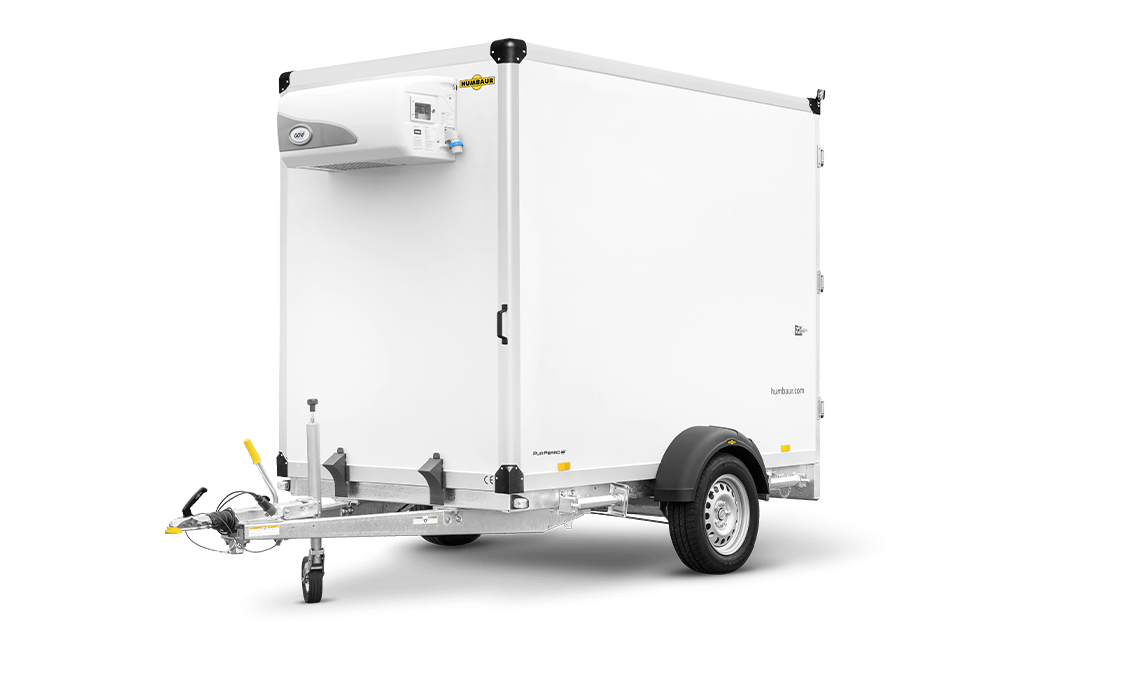

The Humbaur HGK Deluxe is a compact cooling trailer with professional equipment. The single-axle car trailer has a load capacity of approximately 510 kg at a total permissible weight of 1300 kg. Its frame and chassis are made of hot-dip galvanised steel, as is the welded rear portal; the bezels and the rear rain channel are made of anodised aluminium. The box body is constructed from 60-mm-thick PurFerro sandwich panels consisting of a polyurethane foam core with outer layers made of galvanised and powder-coated sheet steel. The insulated floor is some 65 mm thick and does not allow any of the cold to escape downwards. It is also equipped with an anti-slip coating. The cooling unit used is from the well-known Govi brand; operating with a 230-V supply, it allows the trailer to be cooled down to temperatures from +2øC to +10øC while stationary. Cooling while driving is not possible due to the design. Four swivelling telescopic crank supports ensure that the trailer can be safely parked, while the 150-mm-high aluminium scuff plate which runs around the inside gives the surfaces extra durability.
Technical data
HGK Deluxe
HGK Deluxe Standard equipment
- Hot-dip galvanised v-shaped coupling
- 13-pin plug and reversing light, interior lighting
- Insulated 65 mm thick base plate
- Construction using 60 mm thick sandwich panels
- Locking double refrigerator doors with interior emergency opening mechanism
- Stainless steel hinges
- refrigeration unit
- Front and side interior anti-chafing protection, c. 150 mm high, made from corrugated sheet aluminium
- 4 supports with bases screwed into the frame
- Jockey wheel
