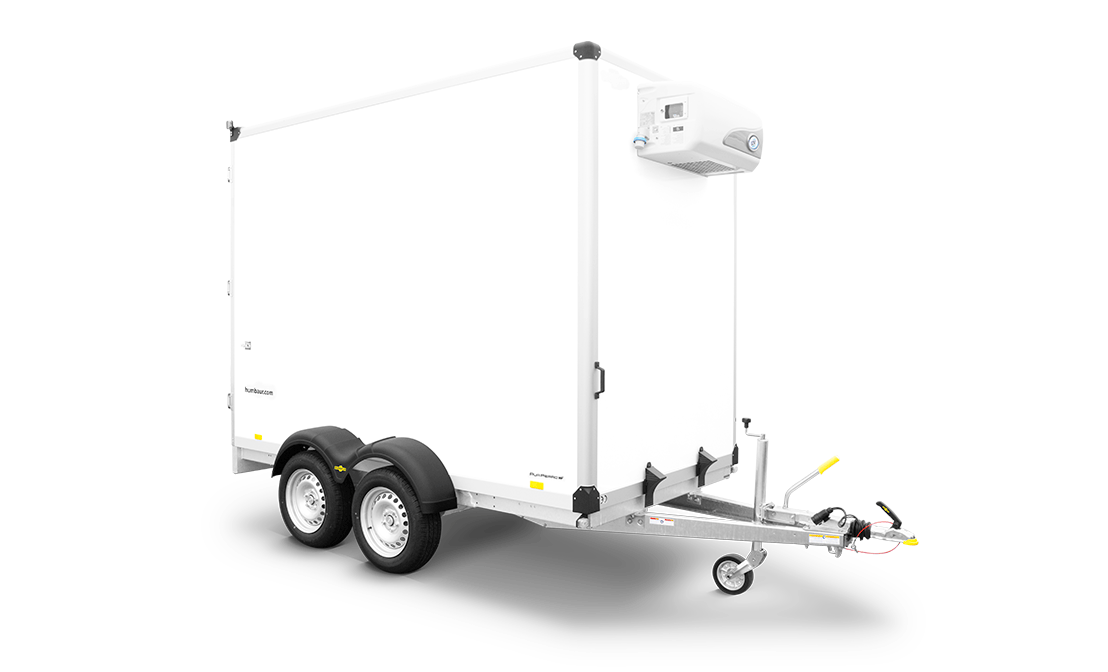

Cool trailer HGK Basic

HGK Basic Tandem

Because freshness matters

The tandem sandwich box trailer for transporting your goods at a cooler temperature. The frame and the chassis are made of hot-dip galvanised steel, giving the sandwich box trailer a long service life. The floor of the sandwich box trailer consists of 18-mm-thick special wood held in place with multiple layers of water-resistant glue and coated in a non-slip phenolic resin. This trailer is constructed from 30-mm-thick sandwich panels, each comprising a polyurethane foam core with an outer layer made of galvanised and polyester-coated sheet steel on each side of the panel. The bezels on the sandwich box trailer are made of anodised aluminium, as are the warp-resistant rear portal and the rear rain channel. The door hinges, espagnolette lock and door closers are made of stainless steel. Plastic seals are mounted on the doors to protect your goods from possible water damage during transportation. The single-axis sandwich box trailer from Humbaur - the essential companion for transporting cold goods safely.

Technical data

Tandem axle sandwich PurFerro inlc. cooling unit

Trailer Tandem axle sandwich PurFerro inlc. cooling unit in detail
Tandem axle sandwich PurFerro inlc. cooling unit silhouette sideview
Inner height 1.885 mmTotal height 2.580 mm
Inner length 3.185 mmTotal length 4.640 mm
Tandem axle sandwich PurFerro inlc. cooling unit silhouette backside
Inner width 1.730 mmTotal width 2.275 mm

Tandem axle sandwich PurFerro inlc. cooling unit Standard equipment

  • Hot-dip galvanised v-shaped coupling
  • 13-pin plug and reversing light
  • 18 mm thick base plate
  • Construction using 30 mm thick sandwich panels
  • Double door
  • Espagnolette lock and hinges made from stainless steel
  • Jockey wheel

Tandem axle sandwich PurFerro inlc. cooling unit Models

Permissible gross weight in kg
2500
Load capacity in kg
1600
Body dimensions in mm (LxWxH)
4640 x 2275 x 2580
Internal dimensions in mm (LxWxH)
3185 x 1730 x 1885
braked
Load height in mm
600
Tyre size in inches
15

HK 253218 - 20 PF 30 Basic

Permissible gross weight in kg
2500
braked
Body dimensions in mm (LxWxH)
4640 x 2275 x 2580
Tyre size in inches
15
Internal dimensions in mm (LxWxH)
3185 x 1730 x 1885
Load capacity in kg
1600
Load height in mm
600



Images similar; some images show special equipment.
