From 13 t The HBTZ BS

Humbaur heavy-duty vehicles

Request quotation

The multifunctional trailer

with dual tyres

Compressed air coupler heads (red/yellow)
Central tube with screw-in towing eye Ø 40 mm
galvanised and infinitely variable using a crank handle

Sturdy welded and hot-dip galvanised frame for optimalstability and safety, drop sides made of anodised aluminium,folding down at the side and back, removable, corner stanchionscan be inserted at front and rear.

Axles with drum brake, maintenance-free parabolic suspension with load compensation.

Serially fitted twin tyres.

Sturdy steel ramps, galvanised, movable to the side, ramp covered with softwood planks, gas strut ramp lifter.

Pneumatic brake with release valve, automatic ALB load-dependent braking, connection hoses with red/yellow coupling heads, 24 V ABV system with spindle parking brake.

15-pole connection plug.

24 V lighting system with multiple-chamber tail lamps, optimally protected and LED side marking lamps.

6 t lashing points recessed in the platform floor (2 pairs / 5.2 m; 3 pairs / 6.2 m).
2 t lashing points in outside frame (6 pairs / 5.2 m; 7 pairs / 6.2 m).

Mudguard equipped with anti-spray system, rigid lateral impact protection.

2 wheel chocks with retainers

Reinforced 12 t geared support jack with load and fast speeds, on the left in the direction of travel.

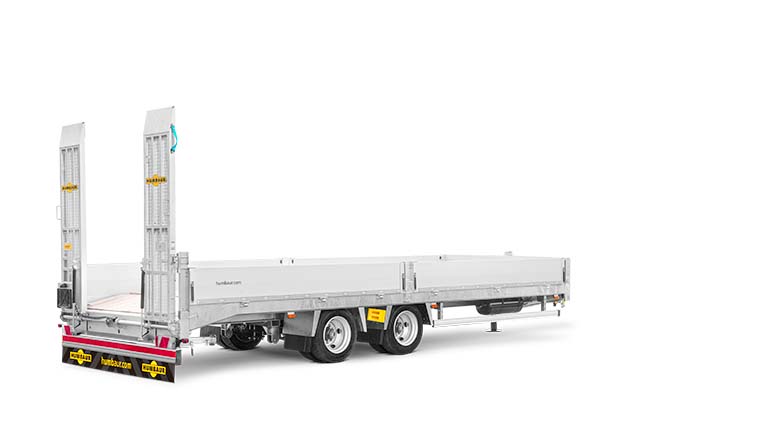

You will recognise it by its twin tyres: The multifunctional trailer HBTZ BS mainly differs from the HBT BS in that it has a higher load capacity. It can be loaded safely and easily in various different situations as a result of its low load height and the standard folding and laterally adjustable ramps. Choose between a straight and a chamfered cargo bed.

Details of the HBTZ BS multifunctional trailer from 13 t:

Galvanised central tube

Sturdy welded and hot-dip galvanised frame

Axles and suspension

Serially fitted twin tyres

Solid, galvanised steel ramps

Compressed-air brake

15-pole connection plug

24 V lighting system with multiple-chamber tail lamps

Tie-down points

Mudguard

2 wheel chocks with retainers

Reinforced 12 t geared support jack

Technical data

HBTZ 136224 BS straight

Permissible gross weight in kg	13600	Body dimensions in mm	8580 x 2550 x 2650
Load capacity in kg	10000	Drive-up angle	16 °*
Internal dimensions in mm	6200 x 2450	Tyre size in inches	205/65 R17,5
Load height in mm	850

HBTZ 136224 BS chamfered

Permissible gross weight in kg	13600	Body dimensions in mm	8370 x 2550 x 3020
Load capacity in kg	9900	Drive-up angle	15 °**
Internal dimensions in mm	6300 x 2450	Tyre size in inches	205/65 R17,5
Load height in mm	850

HBTZ 137224 BS straight

Permissible gross weight in kg	13600	Body dimensions in mm	9580 x 2550 x 2650
Load capacity in kg	9800	Drive-up angle	16 °*
Internal dimensions in mm	7200 x 2450	Tyre size in inches	205/65 R17,5
Load height in mm	850

HBTZ 137224 BS chamfered

Permissible gross weight in kg	13600	Body dimensions in mm	9370 x 2550 x 3020
Load capacity in kg	9700	Drive-up angle	15 °**
Internal dimensions in mm	7300 x 2450	Tyre size in inches	205/65 R17,5
Load height in mm	850

^{* with two piece ramps. ** with single piece ramps.
Subject to technical modifications. All dimensions are approximate values and relate to the series vehicle without accessories. Additional equipment changes both the inherent weight and the load capacity!}

What can I transport with the Humbaur HBTZ BS trailer?

Small construction machines

[Translate to English:] Kompaktbagger/Minibagger

Mini-excavators and compact excavators up to a weight of approx. 9.8 to 10 tonnes, depending on the model.

Construction materials

Construction materials and pallet goods up to 10.2 t.

Concrete pipes

[Translate to English:] Symbolfoto Baumaterialien Abwasserrohre

The HBTZ can also be loaded with particularly unwieldy and heavy construction materials such as concrete pipes.
