7.5 t The HTK
HTK 7.5 t
A three-way tipper that deserves your trust
- Compressed air coupler heads (red/yellow)

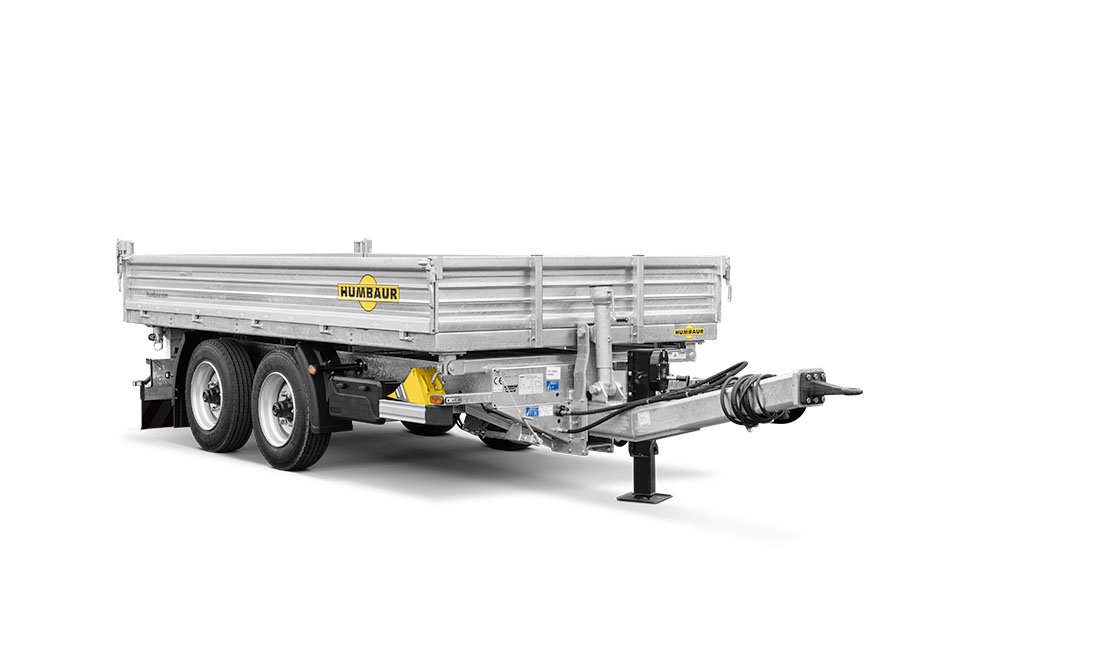

- Central tube with screw-in towing eye Ø 40 mm
- galvanised and infinitely variable using a crank handle
Fenders on front and rear axles with spray protection system; Side protection up to the 1st axis, permanently attached; 2 wheel chocks with holder.

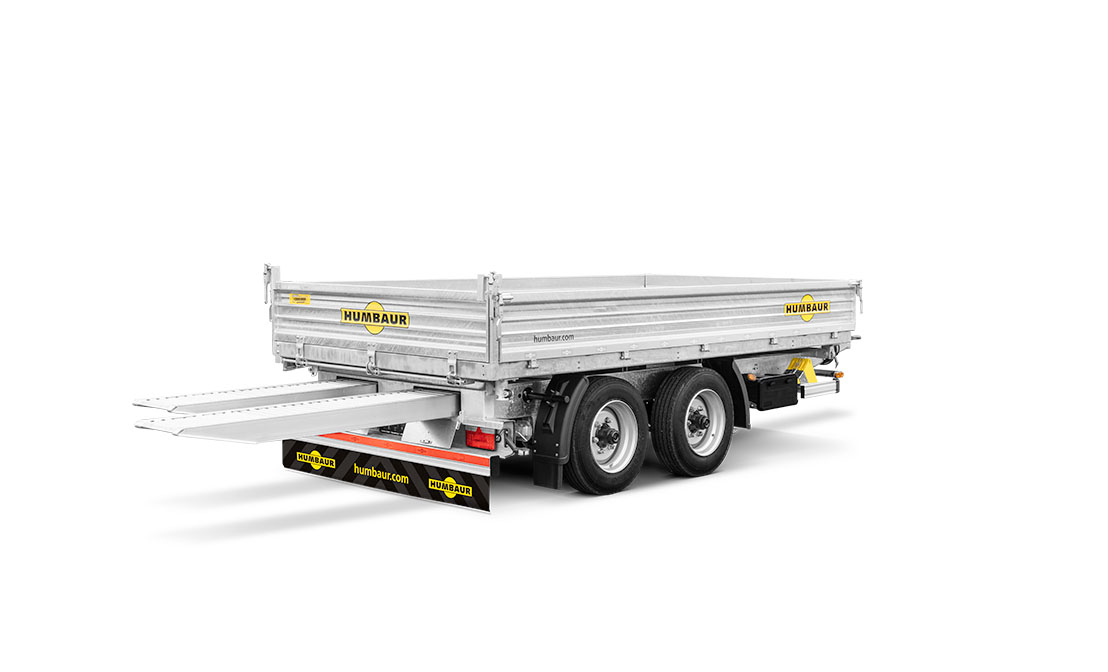

400 mm high, can be folded down and removed. Swinging tailgate with central locking. Front wall made of steel, removable.
Reinforced with 4 mm steel sheet metal and hot-dip galvanized. 4 ball tilting bearings with 2 interchangeable tilting bearing bolts.
Drop sides primer-painted with high-quality two-component paint for optimal corrosion protection, hollow chambers are sealed, painted in a single colour in RAL as requested.

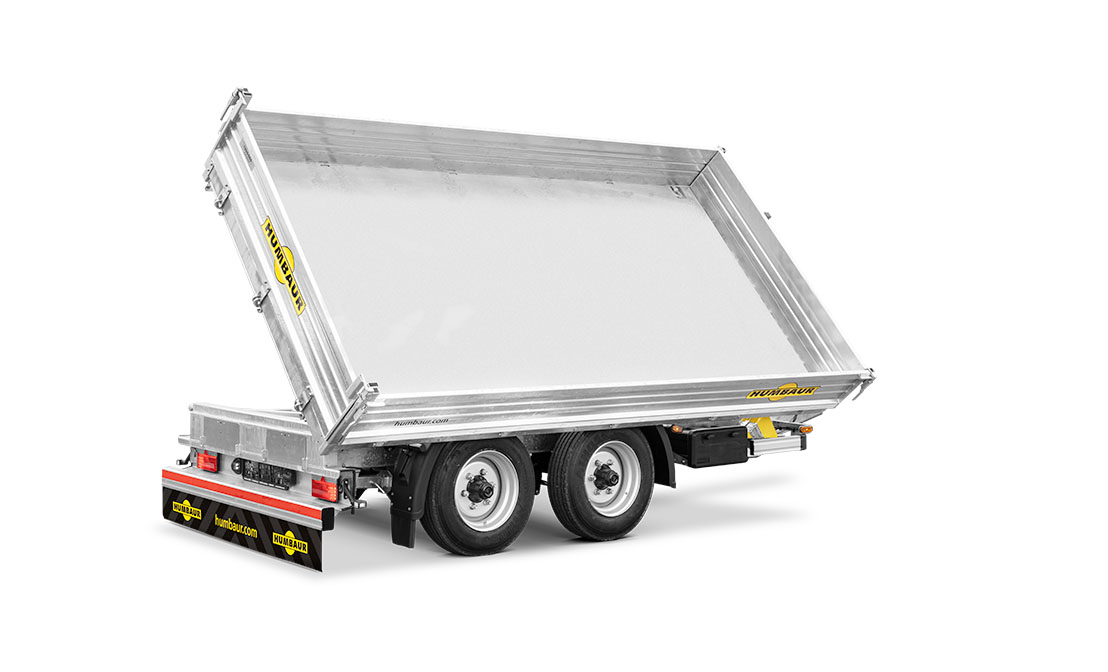

Motor-powered, hydraulic three-way tipping system, fivestep, hard-chromium-plated cylinder with stroke limiter.
Axles with drum brake, maintenance-free parabolic suspension with load compensation.
15-way connecting plug for lighting.
24 V lighting system with multiple-chamber tail lamps, optimally protected and LED side marking lamps.
- 4 massive lashing points at the front and back
- 3 retractable lashing points in the middle
2 wheel chocks with retainers

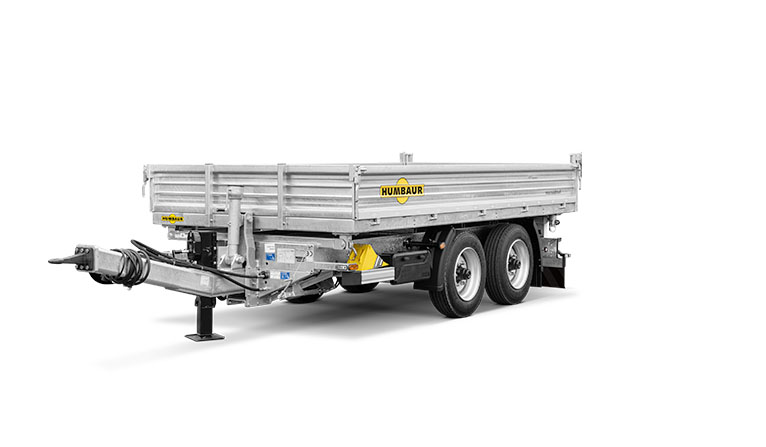

The HTK with a gross weight of 7.5 t is a variable all-rounder. It is particularly impressive with its five-stage hard-chromed cylinder and hydraulic motorised threeway tipper. It has a sturdy, welded, hot-dip galvanised frame for optimum stability and safety. The platform floor is made from 4 mm fine-grained steel. The 500 mm high hinged drop sides with central lock can be folded down at the sides and rear and removed.
HTK 754020
| Permissible gross weight in kg | 7500 | Body dimensions in mm | 6070 x 2200 x 1450 |
| Load capacity in kg | 5300 | Tilt angle (to side/rear) | 45 °/48 ° |
| Internal dimensions in mm | 4000 x 2030 | Tyre size in inches | 215/75 R17,5 |
| Load height in mm | 920 |
Subject to technical modifications. All dimensions are approximate values and relate to the series vehicle without accessories. Additional equipment changes both the inherent weight and the load capacity! With a gross weight of 5 tonnes, the HTK possesses features similar to those found in other models with a gross weight exceeding 10 tonnes.
